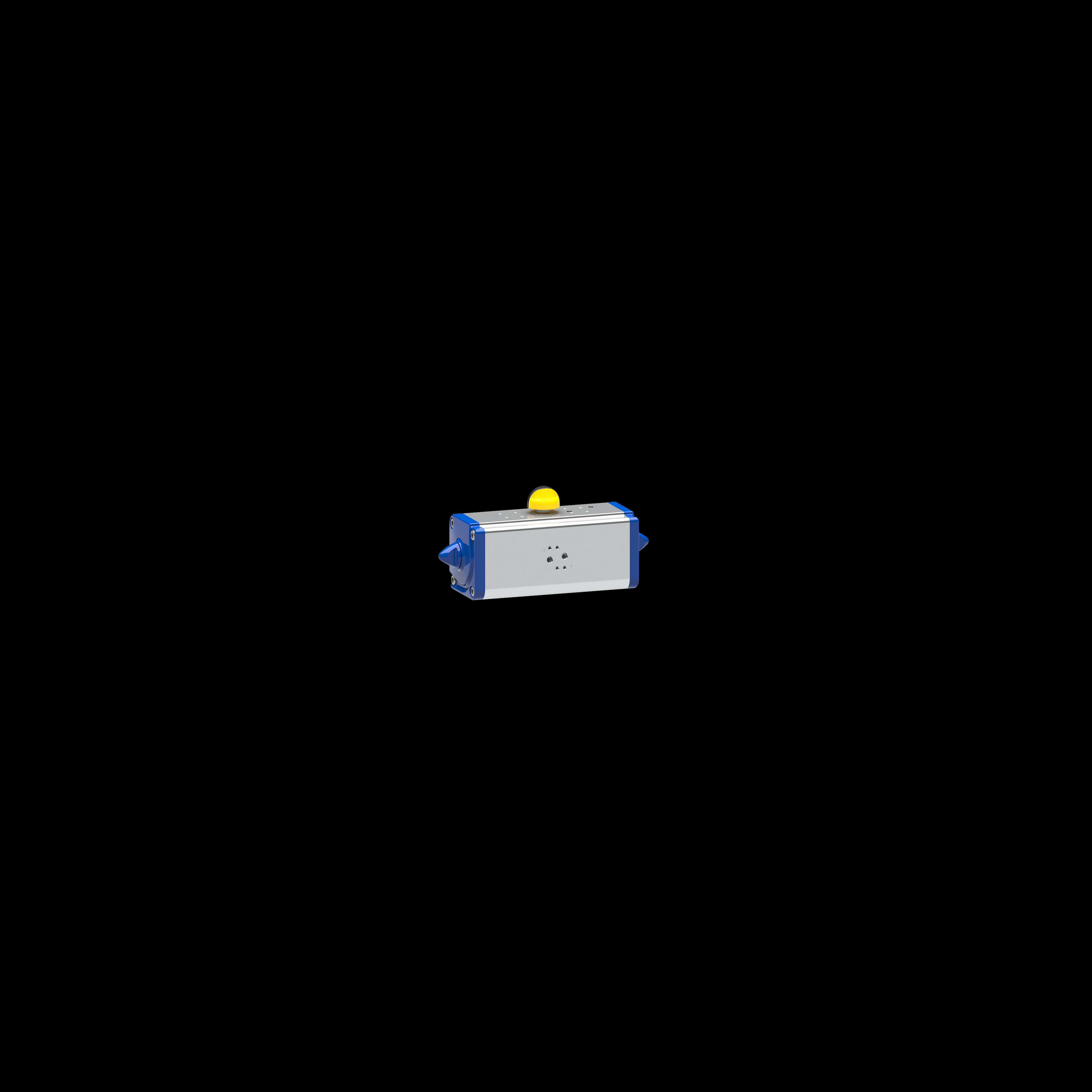

ACTAIR EVO

ລາຍລະອຽດ

Double-acting pneumatic actuator for mounting on quarter-turn valves with ISO 5211 compliant shaft ends (butterfly valves or ball valves). Actuator flange to ISO 5211. Control pressure up to 8 bar. Force transmission via scotch-yoke kinematics provides output torques of up to 8000 Nm which are ideal for actuating quarter-turn valves. Equipped with a visual position indicator and, depending on the actuator size, adjustable travel stops for open/closed position or closed position as standard. Optionally available with mounted or integrated emergency manual override. Suitable for mounting control
